Product Description:

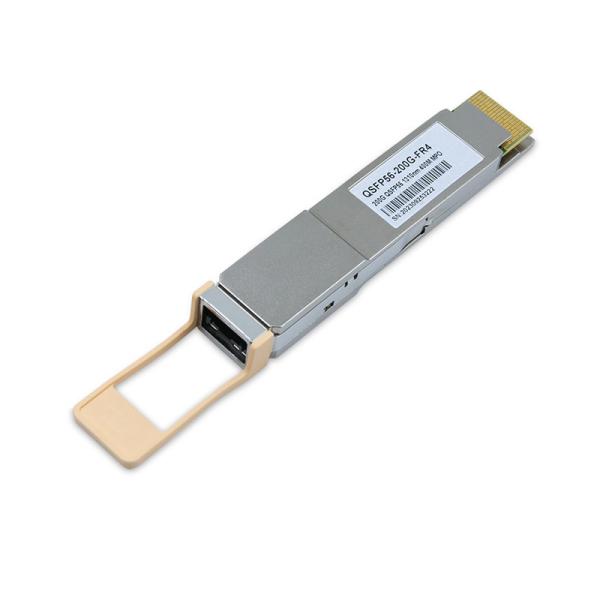

This 200g optical transceiver is compliant with QSFP56 MSA, IEEE 802.3cd and IEEE 802.3bm standards. It uses MTP/MPO-12 connector and supports Digital Optical Monitoring (DOM) functions. The DOM functions provide real-time monitoring of the transceiver's temperature, optical power levels, and voltage.
The 200G QSFP-DD transceiver is hot-swappable and can be plugged into a QSFP56-DD MSA compliant port. The module is designed for high-speed communication links that require 200 Gigabit Ethernet connectivity. It is ideal for data center and enterprise networking applications that require high bandwidth, low latency, and reliable performance.
This 200g optical transceiver has a receiver sensitivity of ＜-6.5dBm, which makes it highly efficient in transmitting data over short distances. The QSFP56 form factor makes it easy to install and maintain, as it is compact and can fit in tight spaces.
The 200G QSFP56 SR4 400M optical transceiver comes with a 3-year warranty, which guarantees its quality and reliability. The warranty covers defects in materials and workmanship, and it assures customers of a hassle-free experience.
In summary, the 200G QSFP56 SR4 400M optical transceiver is a high-performance module that provides reliable and efficient connectivity for short-range multi-lane data communication and interconnect applications. With its QSFP56 form factor, MTP/MPO-12 connector, and 3-year warranty, it is an ideal choice for data center and enterprise networking applications that require high bandwidth, low latency, and reliable performance.
Features:
- Product Name: 200G Optical Transceiver
- Power Supply: 3.3V
- Receiver Sensitivity: ＜-6.5dBm
- Max Data Rate: 200Gbps
- Form Factor: QSFP56
- Transmission Distance: 100m Or 400m
Technical Parameters:
| Data Rate |
200Gbps |
| Power Supply |
3.3V |
| Media |
MMF |
| Transmission Distance |
100m or 400m |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Receiver Sensitivity |
<-6.5dBm |
| Hot Pluggable |
Yes |
| Extinction Ratio |
>3dB |
| Temperature |
C-Temp & I-Temp |
| Connector |
MTP/MPO-12 |
Applications:
The 200G QSFP-DD Transceiver is designed for use in a wide range of applications, including data centers, storage area networks, high-performance computing, and cloud computing. The product is hot pluggable, which means that it can be removed and replaced without shutting down the system. The connector used is MTP/MPO-12, which ensures that the product is compatible with a wide range of devices.
The 200G QSFP-DD Transceiver can transmit data up to a distance of 100m or 400m, depending on the media used. The product is designed to work with MMF, which ensures that it is compatible with a wide range of devices. The product is available in C-Temp and I-Temp variations, which means that it can be used in a wide range of temperature conditions.
Zkosemi's 200G QSFP-DD Transceiver is available at a negotiable price, and the minimum order quantity is 1PCS. The packaging details and delivery time are also negotiable, depending on the customer's requirements. The product is hot pluggable, which means that it can be easily installed and replaced without any interruption to the system.
The 200G QSFP-DD Transceiver is ideal for use in scenarios where high data transfer rates are required. It is designed to work with a wide range of devices, and its compatibility with MMF ensures that it can be used in a wide range of environments. The product is designed to meet the highest quality standards, which ensures that it is reliable and durable.
In conclusion, Zkosemi's 200G QSFP-DD Transceiver (Model Number: ZK-QSFPDD-SR4) is a high-speed fiber optical transceiver that is designed to meet the highest quality standards. The product is hot pluggable, compatible with a wide range of devices, and designed to work with MMF. It is ideal for use in scenarios where high data transfer rates are required, and it is available at a negotiable price.
Customization:
Zkosemi is proud to offer product customization services for the 200G Optical Transceiver. Our model number is ZK-QSFPDD-SR4 and it is hot pluggable, with a maximum data rate of 200Gbps. The receiver sensitivity is ＜-6.5dBm and it uses an MTP/MPO-12 connector, designed for use with multimode fiber.
Our 200g optical transceiver is manufactured in China and comes with a variety of certifications including CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, and UL. The minimum order quantity is 1PCS, and pricing is negotiable. Packaging details are also negotiable, and delivery time is typically 1-5 work days. Payment terms include T/T, Western Union, and MoneyGram, and we have a supply ability of 50,000pcs/month.
For more information on our 200G QSFP56 LR4 or 200G QSFP56 product line, please don't hesitate to contact us.
