400GBASE SR4 QSFP112 Transceiver MTP/MPO 100m over MMF

Product Categories
Shenzhen Zkosemi Semiconductor Technology Co., LTD.
Contact Now

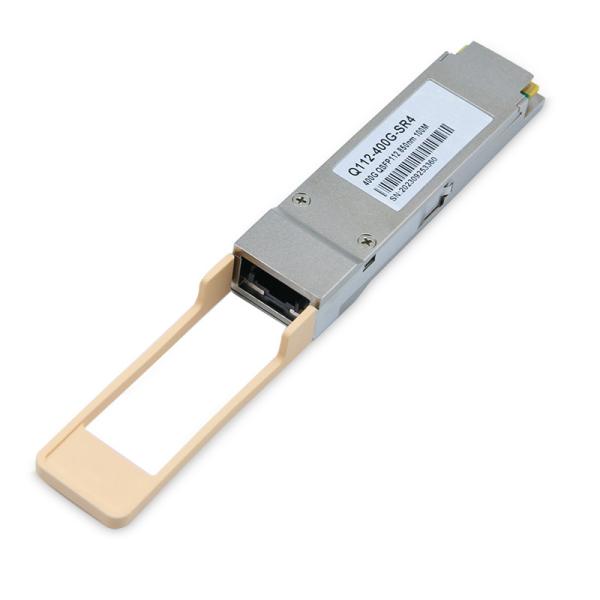

400GBASE SR4 QSFP112 Transceiver MTP/MPO 100m over MMF

  • 1
  • 2
  • 3

Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin : China

MOQ : 1 pcs

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50,000pcs/month

Delivery Time : 1-5 work days

Packaging Details : Single Package,10pcs per Tray,100-500pcs per Carton

Form Factor : QSFP112

Max Data Rate : 400Gbps

Wavelength : 850nm

Distance : 100m

Connector : MTP/MPO- 12 (APC)

Media : MMF

Transmitter Type : VCSEL

Receiver Type : PIN

TX Power : -4.6~4dBm

Receiver Sensitivity : <-6.4dBm

Receiver Overload : 4dBm

Power Consumption : ≤10W

Extinction Ratio : >2.5dB

Temperature : C-Temp & I-Temp

Protocols : IEEE Std 802.3db、QSFP112 MSA、CMIS 4.0

Warranty : 3 Years

Compatible Brand : Cisco,Arista,Juniper,Brocade,H3C,Dell,Extreme,HW,Intel,Netgear,IBM Mellanox,Mellanox,Avaya,Alcatel-Lucent,D-Link,Ubiquiti&Generic

Contact Now

Transceiver

Features



  • Data rate 106.25Gbps (PAM4) per channel
  • MPO-12 APC connector
  • 4x100GPAM4 VCSEL array
  • Single +3.3V power supply
  • DDM function implemented
  • Hot-pluggable QSFP112 form factor
  • Maximum link length of 100m on OM4/0M5 (MMF)
  • Operating temperature range: 0~+70°C
  • Maximum power consumption 10W
  • Class 1 laser
  • ROHS 6.0 complaint



Applications



  • 400GBASE-SR4 Ethernet
  • Switch & Router Connections
  • Data Centers
  • Other 400G Interconnect Requirements



Description



The 400G QSFP112 SR4 Transceiver is designed to transmit and receive serial optical data links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over multi-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated Optical Extinction Ratio 2.5 dB with high performance vcsel. It is compliant with 400G Ethernet specs and QSFP112 MSA
